Hayawin SMT PCB Conveyor Wholesale solutions deliver high-performance automated PCB transportation systems for modern electronics manufacturing. From the very first cycle, our Board Handling YS Model systems ensure precise, efficient, and reliable movement of printed circuit boards, setting the standard for streamlined SMT assembly lines.

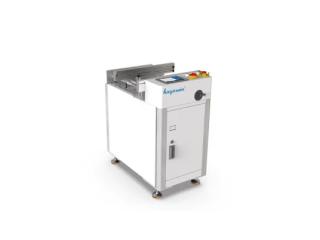

The SMT PCB Conveyor Wholesale is a specialized transportation system designed to automate the movement of PCBs between various production stages such as pick-and-place, reflow ovens, and inspection stations. Constructed with industrial-grade materials like aviation aluminum profiles and high-strength iron plates, our conveyor system offers robust durability and stability. Key design elements include safety door locks, a PLC programmable controller, and an ESD belt transmission that allows for flexible flow directions. With customizable options for machine length, stop boards, lighting racks, and more, our YS-CV460 SMT PCB Conveyor systems are fully adaptable to different production needs and equipment configurations.





Technical Specification

























Conveyor speed



0.59m/min(adjustable)



Power supply



220V  50HZ



Transport height



950±30mm



Flow direction



Left to Right/Right to Left






Model Specification





















Model



YS-CV460



PCB width



50460mm



Dimensions (L*W*H)



(5001500)×880×960mm






Key Features of Hayawin YS-CV460 SMT PCB Conveyor








Precise Width Adjustment:
Our SMT PCB Conveyor Wholesale systems feature adjustable rail widths, ensuring compatibility with various PCB sizes and enhancing overall production precision.





Smooth and Reliable Operation:
An anti-jamming design and dual belt drive system provide a consistent and stable flow, minimizing misalignment and ensuring continuous, high-volume production.





Variable Speed Control:
The system's variable speed settings allow seamless synchronization with upstream and downstream equipment, optimizing the overall workflow.





Modular and Expandable Design:
The modular design of our SMT PCB Conveyor Wholesale systems enables easy integration with multiple SMT machines and flexibility in line configuration, allowing for future expansion.





Robust Construction and Safety:
Constructed with a 30T thick body panel and a reinforced A3 frame, the conveyor system is designed for high stability, low vibration, and enhanced safety features such as an automatic shutdown protection system.





Why Choose Hayawin as Your SMT PCB Conveyor Wholesaler?





Enhanced Production Efficiency:
Our SMT PCB Conveyor Wholesale system automates the transportation of PCBs, significantly reducing manual handling and speeding up the assembly process, thereby increasing throughput.





Improved Quality and Consistency:
With precise positioning and smooth operation, the system ensures accurate PCB placement and alignment, which is crucial for high-quality soldering and component assembly.





Cost Savings:
Automation reduces labor costs and minimizes errors, leading to lower production costs over time. The system’s durability also ensures a long operational life with minimal maintenance.





Versatile Integration:
Designed to work with various PCB equipment, our SMT PCB Conveyor Wholesale systems are easily integrated into existing production lines and can be customized for specific workflow requirements.





Scalability:
Whether for small-scale production or large-scale manufacturing, the flexible design of our conveyor systems makes them scalable to meet the demands of high-mix, high-volume electronics assembly.





Applications





SMT Assembly Lines:
Our SMT PCB Conveyor Wholesale systems are essential for linking equipment such as pick-and-place machines, reflow ovens, and inspection stations, ensuring smooth and automated PCB movement.





High-Volume Manufacturing:
Ideal for large-scale production environments where rapid, consistent, and precise PCB handling is required, the system enhances production capacity and efficiency.





Quality Control Stations:
Integrated into production lines, these conveyors facilitate thorough inspection and quality assurance by ensuring that PCBs are correctly aligned and positioned for testing.





Customized Production Lines:
With customizable options, our SMT PCB Conveyor Wholesale systems cater to diverse production setups, adapting to various board sizes, layouts, and operational requirements.





Hayawin SMT PCB Conveyor systems provide an advanced, reliable, and efficient solution for automated PCB handling in modern manufacturing environments. Engineered with precision and robust construction, these systems enhance production efficiency, improve product quality, and offer scalable integration into any assembly line. Choose Hayawin solutions to streamline your manufacturing process and achieve unmatched reliability from the very first cycle to the final output, ensuring our SMT PCB Conveyor Wholesale remains the trusted choice for your production needs.
