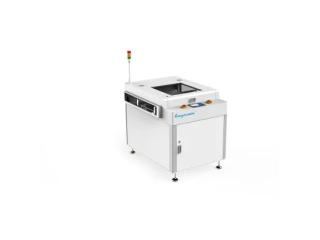

SMT PCB Turning Conveyor Clamp – Advanced Automated PCB Handling and Rotation System





SMT PCB Turning Conveyor Clamp provided by Hayawin is an innovative automated system designed for high-precision PCB handling in modern electronics manufacturing. Engineered to rotate circuit boards accurately at 90°, 180°, or 270°, this device optimizes production workflows by seamlessly transferring PCBs between process stages. From the very first cycle, our SMT PCB Turning Conveyor Clamp ensures reliable and efficient board rotation, making it a critical component for high-volume SMT lines.





The SMT PCB Turning Conveyor Clamp is purpose-built for integration into circuit board production lines. Utilizing a robust machine frame made from high-strength iron plate and aviation aluminum profiles, this device guarantees stability and long-term durability. Its design features a fully enclosed structure with a transparent observation window, ensuring that operators can monitor the process at all times. The system is equipped with a PLC programmable controller and touch screen for precise control, while the standard SMEMA interface enables seamless connection with other SMT equipment.





Technical Specification

































Cycle time



≈15S



Power supply



220V 50HZ



Air supply & usage



0.4-0.6MPa≤10L/min



Rotate degree



±90°



Transport height



950±30mm



Flow direction



Left to Right/Right to Left






Model Specification

































Model



YS-CD460



Pass-through Min PCB Size(L*W)



80×50mm



Pass-through Max PCB Size(L*W)



530×460mm(or customized)



Rotate Min PCB Size(L*W)



150×150mm



Rotate Max PCB Size(L*W)



530×460mm(or customized)



Dimensions (L*W*H)



1000×1300×1100mm
