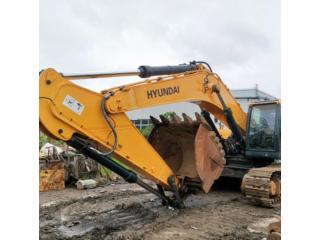

Used High Quality Hyundai R485lvs 48ton Excavator with Low Hour
Model：Hyundai R485lvs
Engine Model ： Cummins QSM11
Net Power ： 242 kW (325 hp) at 2,000 rpm
Gross Power ： 254 kW (341 hp) at 2,000 rpm
Displacement ： 10.8 L (659 in³)
Operating Weight ： 46,200 - 49,000 kg
Maximum Dig Depth ： 8.7 m (28.5 ft)
Product Features
The Hyundai R485LVS is a large hydraulic excavator designed for heavy-duty applications, particularly in mining and large-scale construction projects. Here are the key characteristics of the Hyundai R485LVS:
### Features
- **Undercarriage**: Robust undercarriage with sturdy tracks designed for stability and durability in demanding mining and construction environments.
- **Attachments**: Compatible with a variety of attachments including large buckets and specialized mining equipment, offering versatility for different job site requirements.
- **Technology**: Advanced monitoring systems for tracking machine health and performance, ensuring optimal operation and maintenance scheduling.
### Maintenance
- **Service Accessibility**: Easy access to service points and components, simplifying routine maintenance tasks and minimizing downtime.
- **Durability**: Built with high-quality materials and components to withstand rugged conditions and ensure long-term reliability.
### Additional Features
- **Fuel Efficiency**: Designed to optimize fuel consumption, reducing operating costs while maintaining high productivity levels.
- **Safety Features**: Includes comprehensive safety features such as ROPS (Roll-Over Protective Structure) cab, rearview cameras, and audible alarms to enhance job site safety and operator awareness.
The Hyundai R485LVS is engineered to deliver powerful performance, durability, and efficiency for the most demanding applications in mining and large-scale construction projects. Its robust design, advanced technology, and operator-focused features make it a reliable choice for tackling challenging tasks and ensuring productivity in tough environments.
Technical Parameters
Used High Quality Hyundai R485lvs 48ton Excavator with Low Hour
Engine Model | Cummins QSM11 |
Net Power | 242 kW (325 hp) at 2,000 rpm |
Gross Power | 254 kW (341 hp) at 2,000 rpm |
Displacement | 10.8 L (659 in³) |
Operating Weight | 46,200 - 49,000 kg |
Maximum Dig Depth | 8.7 m (28.5 ft) |
Maximum Reach at Ground Level | 12.9 m (42.3 ft) |
Maximum Dump Height | 9.2 m (30.2 ft) |
Bucket Capacity | 1.7 - 3.0 m³ (2.2 - 3.9 yd³) |
Main Pump Flow | 2 x 325 L/min (2 x 85.9 gal/min) |
Relief Valve Setting | 34.3 MPa (4,976 psi) |
Width | 3.34 m (11.0 ft) |
Height | 3.56 m (11.7 ft) to top of cab |
Tail Swing Radius | 3.65 m (12.0 ft) |
Track Length on Ground | 4.4 m (14.4 ft) |
Track Gauge | 2.65 m (8.7 ft) |
Track Shoe Width | 600 mm (23.6 in) |
Number of Track Rollers (each side) | 9 |
Ground Pressure | 101 kPa (14.6 psi) |
Swing Speed | 8.5 RPM |
Travel Speed | 5.1 km/h (3.2 mph) |
Gradeability | 35° |
Fuel Tank Capacity | 640 L (169 gal) |
Hydraulic Tank Capacity | 430 L (113.6 gal) |
Engine Oil Capacity | 40 L (10.6 gal) |
Coolant Capacity | 73 L (19.3 gal) |
Hyundai Excavators are known for their reliability, durability, and advanced technology in the construction and heavy machinery industries. Buying a used Hyundai excavator can offer significant savings while still providing the performance you need for various digging, lifting, and material-handling tasks. Hyundai's excavators, like the R60 and Robex series, are often sought after on the used equipment market due to their high performance and lower operating costs.
