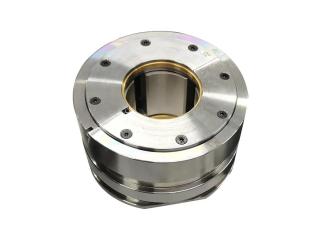

High speed Tilting pad journal bearings are used for fans, compressor, high voltage motors, turbines, gearbox, expander, and wind power generator motors.
Our bearings are exchangeable of DAIDO METAL bearing, waukesha bearing, kingsbury bearing.
We can customize journal thrust plain bearings according to your special requirements.
Maximum linear speed: 120m/s,
Bore diameter.1500mm
Average pressure: 3.0Mpa,
Range of Bearing bore diameter: 30-450mm
Range of Speed: 5000rpm-56000rpm
Pads substrate material: 42CrMo or Cu-Cr
Number of pad: 4-pad, 5-pad
Pivot offset: 0.5, 0.55, 0.6
Reduced temperature increase and vibration With RTD
Pads with linear or spherical pivots
Design for high speed gearbox with 2-axial, 3-axial, 4-axial, 5-axial, 6-axial
Babbitt (Tegostar 738) meets Europe REACH requirements
Self-aligning, adjustable bearing clearance
Why Choose HZ JOURNAL Bearings - Your Trusted Tilt Pad Bearings Supplier
Tilt pad bearings, also known as tilting pad bearings or tilting pad journal bearings, are advanced components designed to support rotating shafts in various industrial applications. Our company specializes in manufacturing high-quality tilt pad bearings that offer exceptional performance, reliability, and efficiency. These bearings are particularly suited for high-speed machinery, where they excel in managing radial loads and minimizing friction.Tilting pad journal bearings have special design features to ensure outstanding performance and seamless integration with diverse turbo machinery applications. These bearings are equipped with advanced options such as spherical seats, hydro static jacking, combined single or double acting thrust capability, electrical insulation, and squeeze film damping. Engineered by HZ JOURNAL Bearings, they are customized to meet the unique application. They also offer a variety of pad pivot types and geometries to accommodate varying alignment needs. Tilting pad journal bearings are applied in the industries, such as compressors, pumps, motors, generators, turbines, and gearboxes.
Key Features of Our Tilt Pad Bearings
High Load Capacity: Our tilt pad bearings are engineered to handle substantial radial loads, making them ideal for applications such as turbines, compressors, and other high-speed machinery.
Reduced Friction: The hydrodynamic lubrication system significantly reduces friction, enhancing the efficiency of the equipment.
Vibration Resistance: These bearings are designed to minimize vibrations, which is crucial for maintaining the integrity of rotating machinery.
Durability: Constructed from high-quality materials, our tilt pad bearings are built to withstand harsh operating conditions and provide long service life.
Applications of Tilt Pad Bearings
Our tilt pad bearings are widely used across various industries due to their versatility and reliability. Common applications include:
Power Generation: Essential in steam, gas, and hydro turbines for supporting rotor shafts.
Oil and Gas: Used in compressors and pumps where high-speed operation is standard.
Marine Engineering: Found in propeller shafts and gearboxes on ships.
Industrial Machinery: Utilized in blowers, fans, and other rotating equipment.
Maintenance and Care
To ensure optimal performance of our tilt pad bearings, regular maintenance is crucial:
Lubrication: Use high-quality lubricants suitable for the operating conditions. Regularly check lubricant levels to prevent dry running.
Cleaning: Keep the bearing surfaces clean from contaminants that can cause wear or damage.
Monitoring: Regularly inspect for temperature and vibration levels to identify potential issues early.
